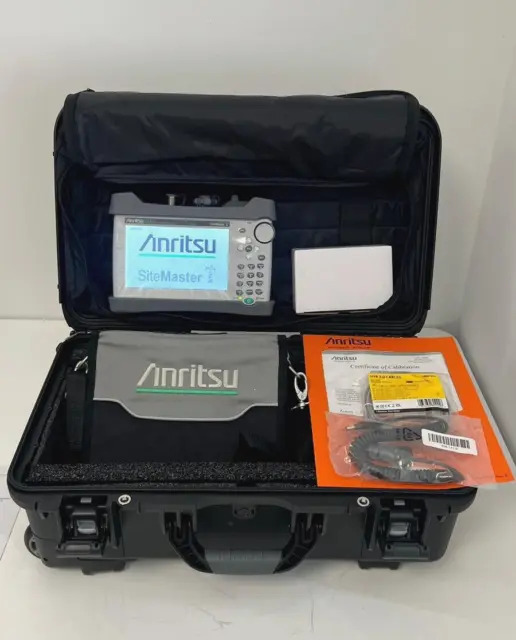

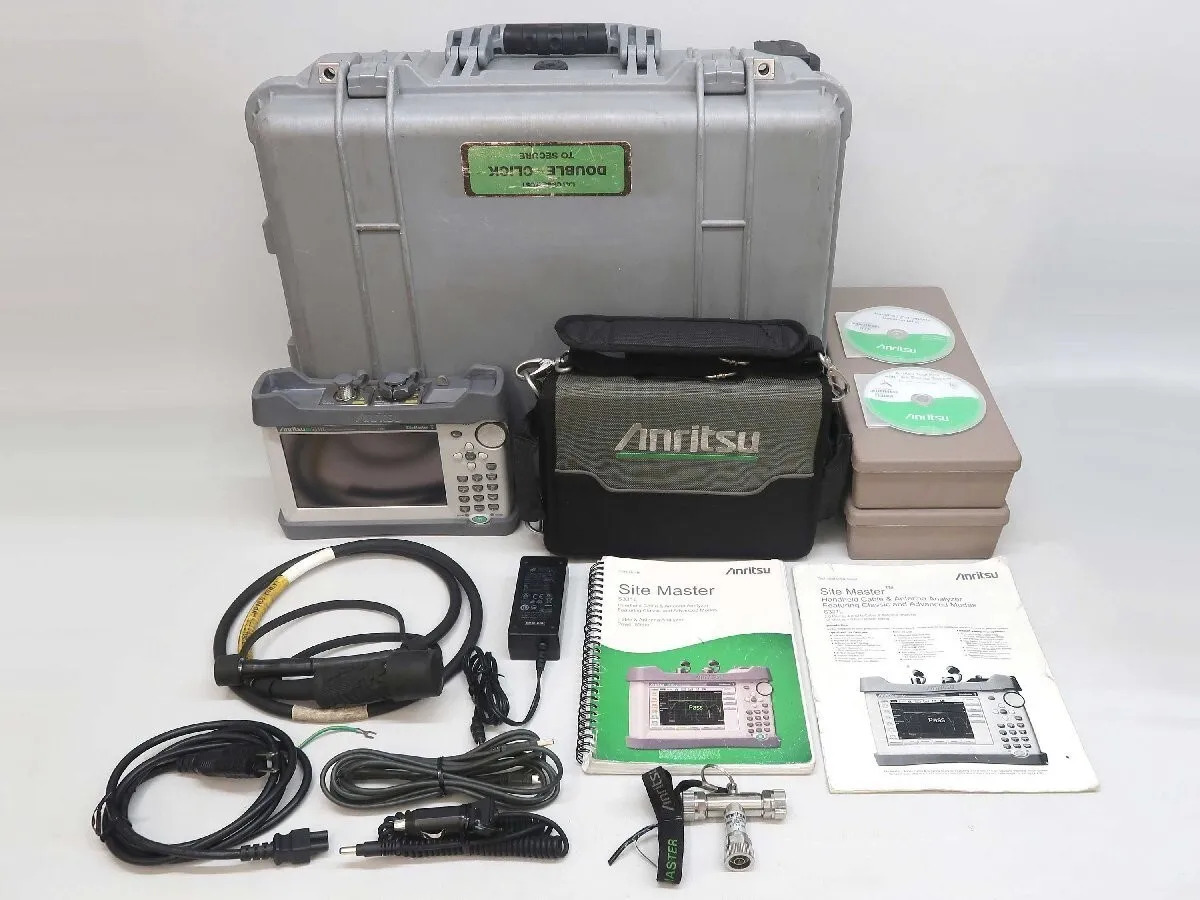

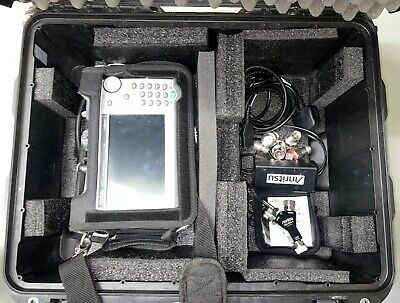

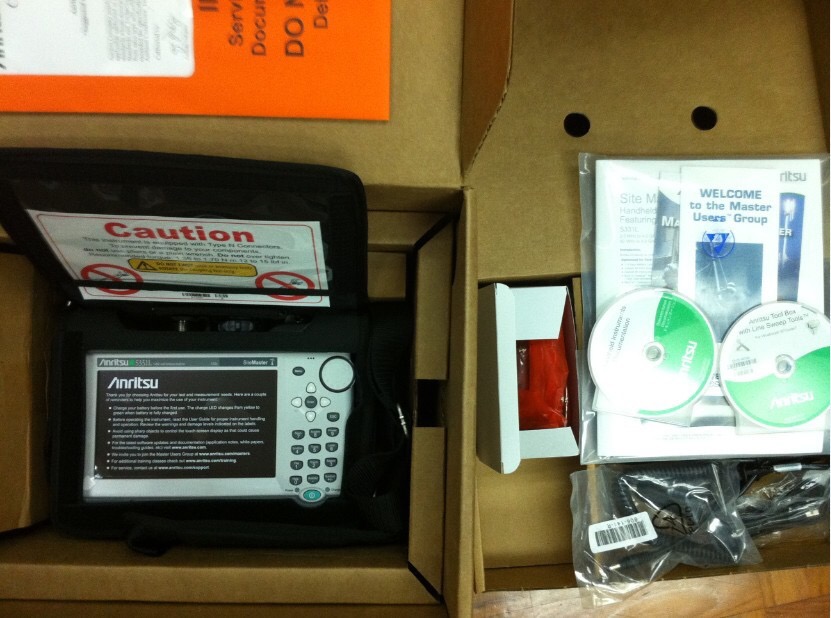

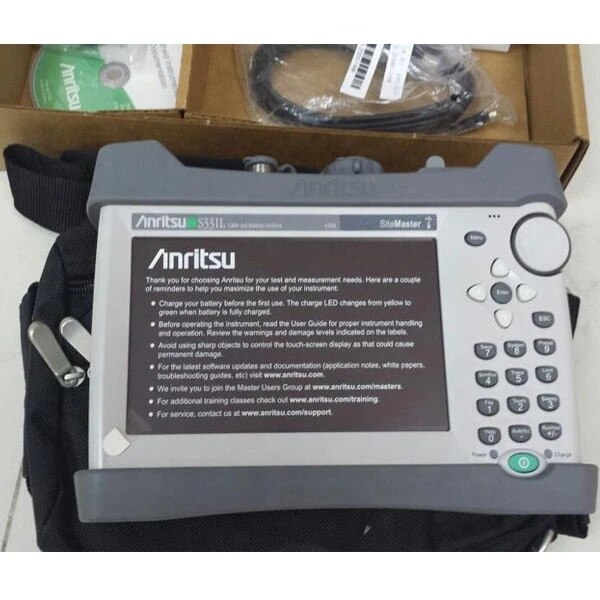

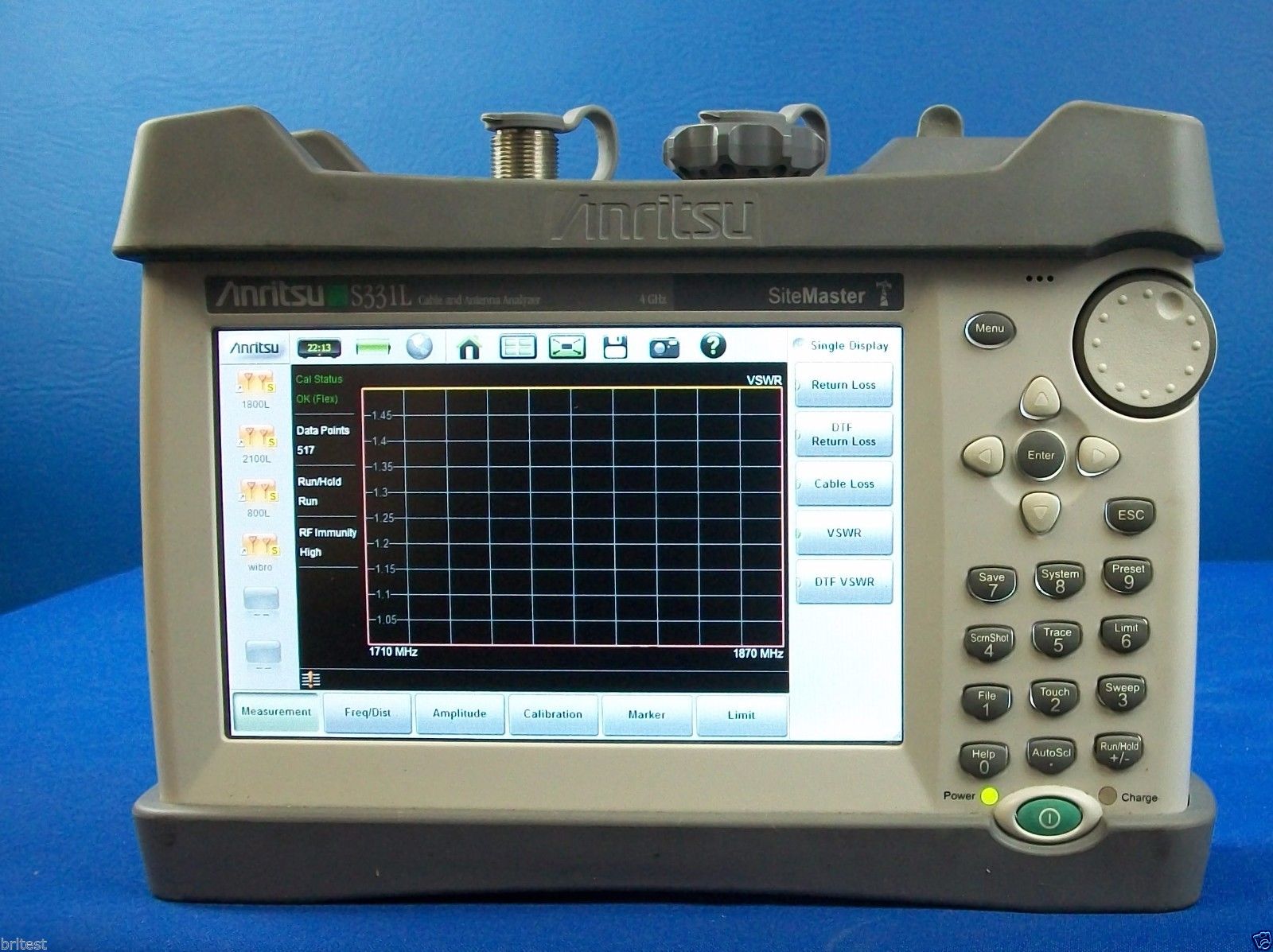

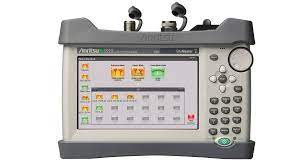

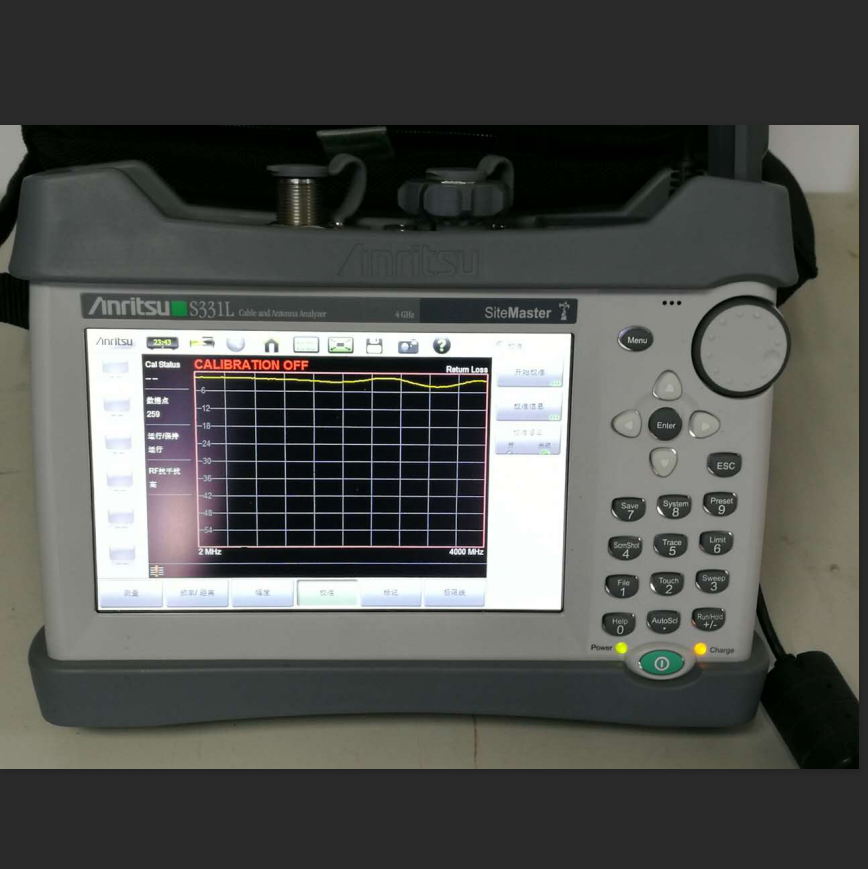

Anritsu Site Master S331L
Standard
- Cable and Antenna Analyzer: 2 MHz – 4 GHz
- Spectrum Analyzer: 9 kHz – 4 GHz
- Return Loss, Cable Loss, VSWR, Distance-To-Fault, Smith Chart, 1-Port Phase
- Intuitive menu-driven touch screen user interface
- USB connectivity, built-in touch screen keyboard
- Field-proven design: Four-hour battery life, rugged, compact, lightweight, daylight viewable display
- PIM Hunting
- PIM Alert (a downloadable easyTest™ script)
- Supported by Multiwave Smart Aligner Android application
- Standard three-year warranty (battery one-year warranty)
Cable and Antenna Analyzer Highlights
- Measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Phase
- 2-port Transmission Measurement: High/Low Power
- Sweep Speed: 1 msec/data point, typical
- Display: Single or Dual Measurement Touchscreen
- Calibration: OSL, InstaCal, and FlexCal
- Bias Tee: 32 V internal
Spectrum and Interference Analyzer Highlights
- Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Spectral Emission Mask, PIM Hunting
- Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID
- Dynamic Range: > 95 dB in 10 Hz RBW
- DANL: -152 dBm in 10 Hz RBW
- Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
- Frequency Accuracy: < ±50 ppb with GPS On
